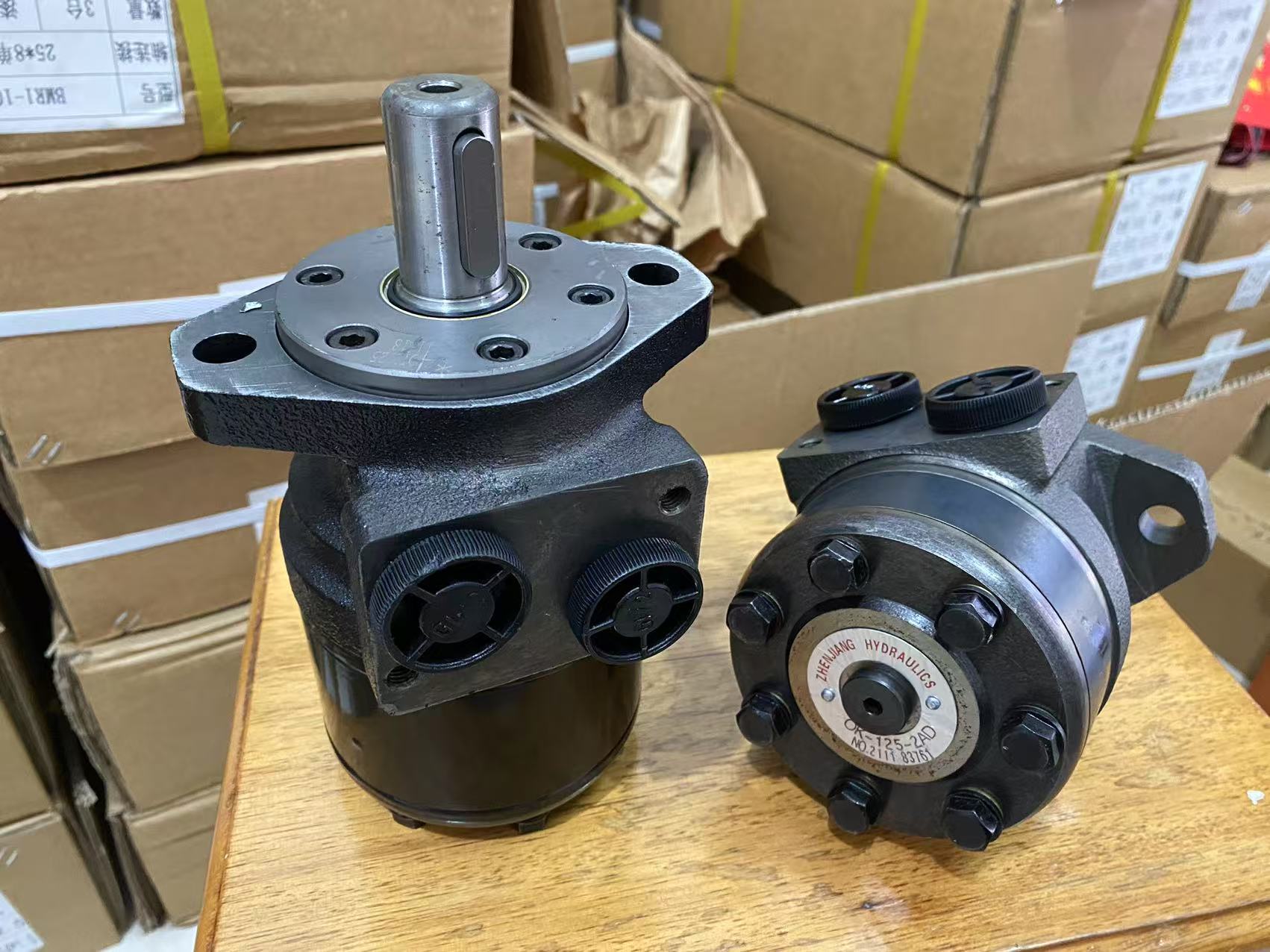

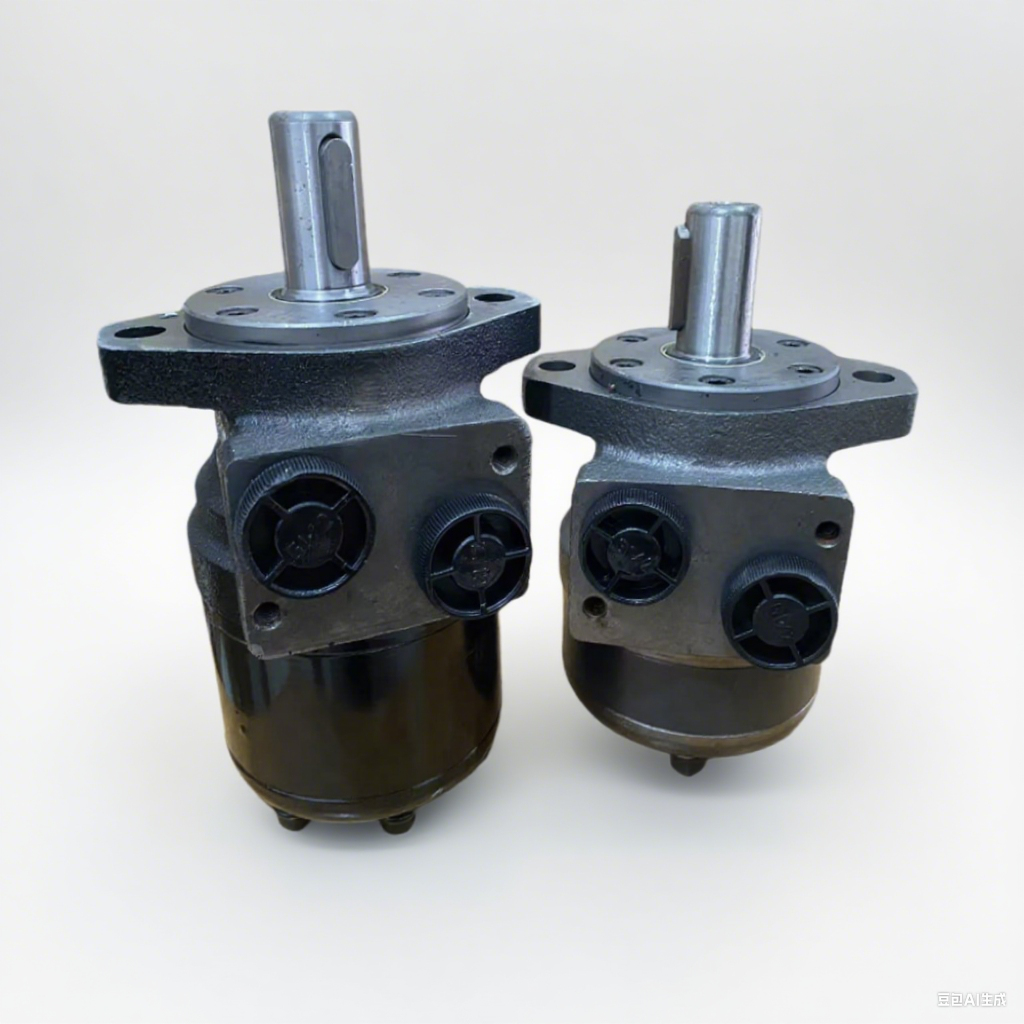

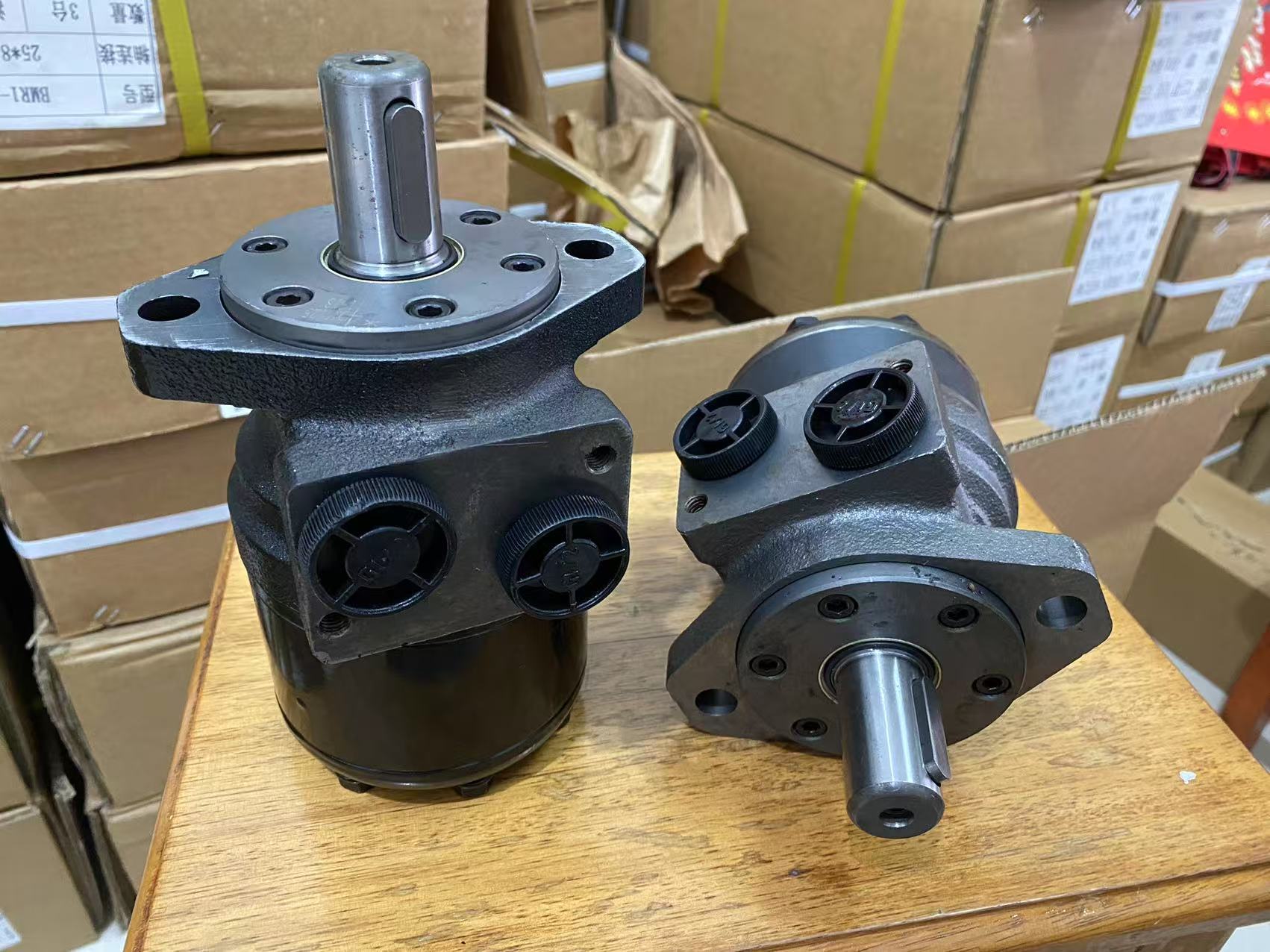

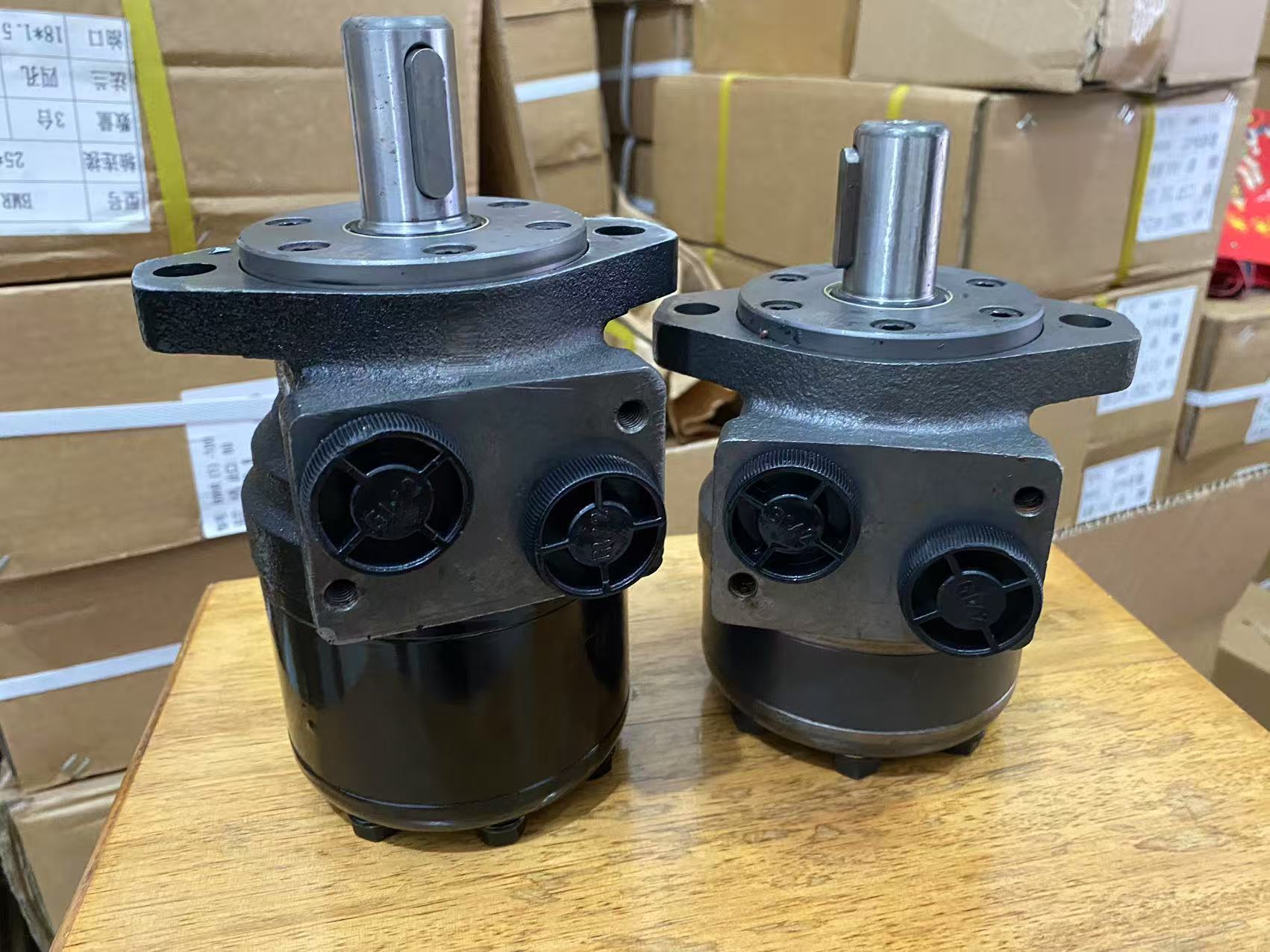

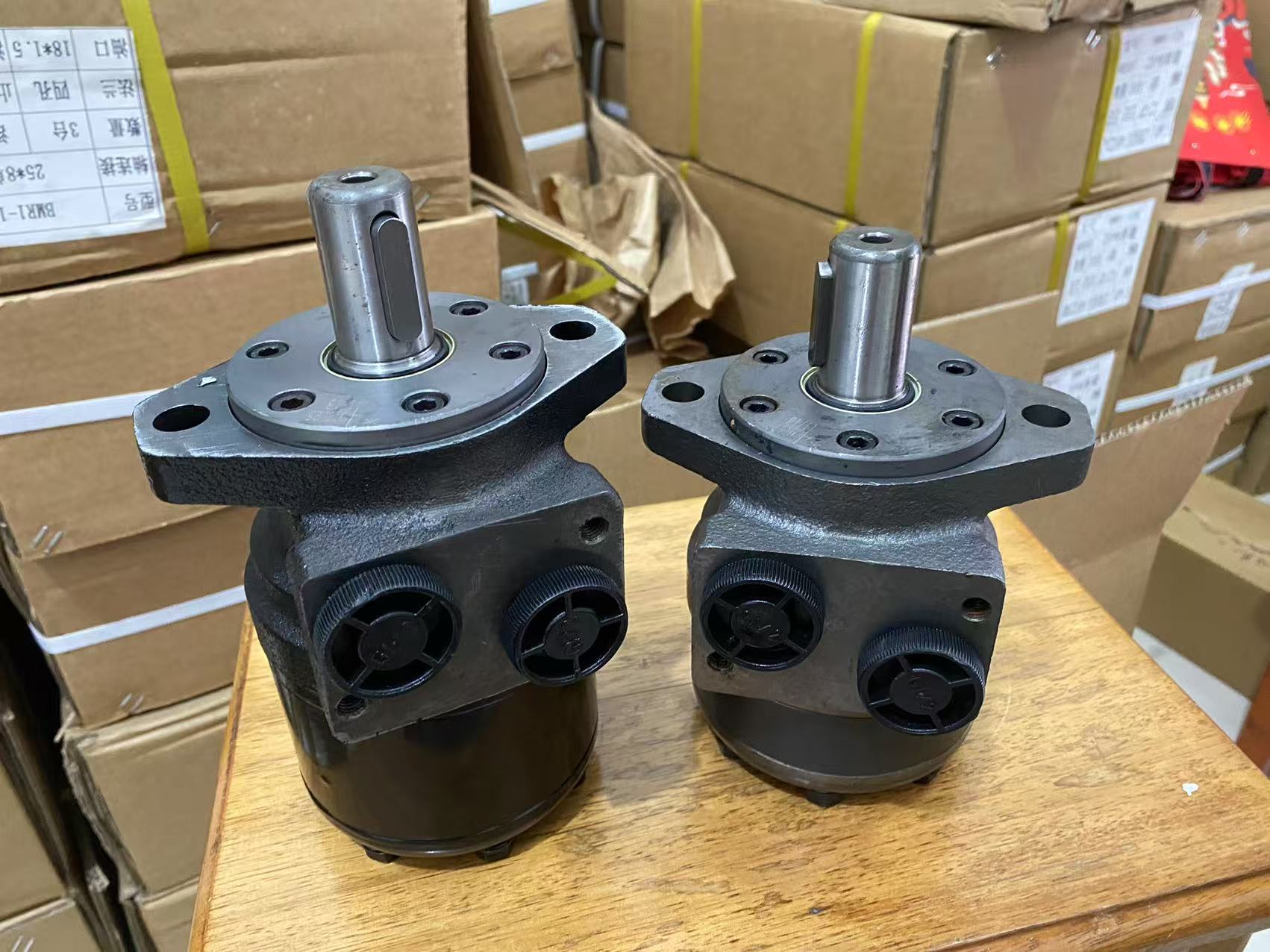

OK series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.

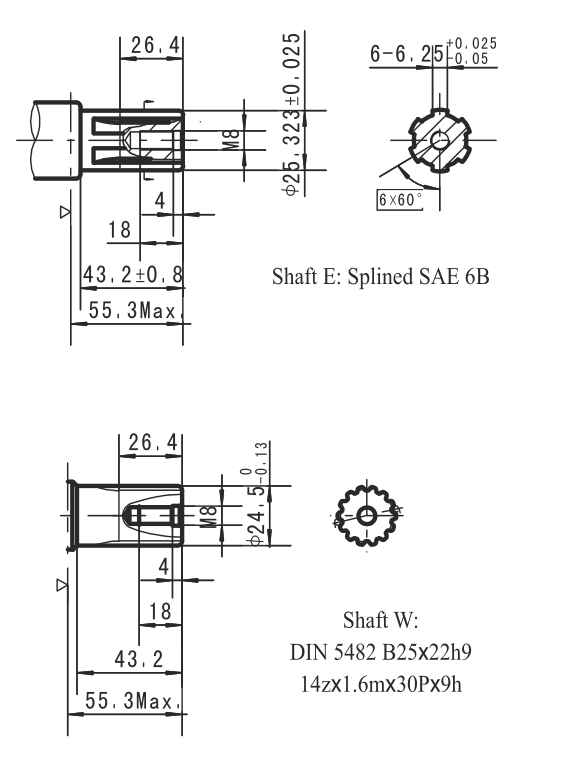

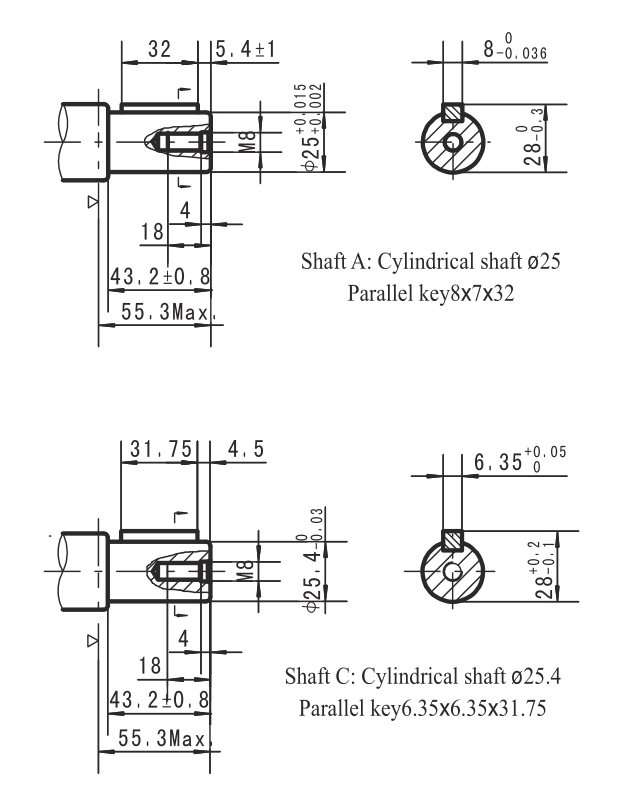

Technical data for OK with 25 and 1 in and 1 in splined and 28.56 tapered shaft
|
Code |
Displacement (cm3/rev.) |
Maximum speed (rpm) |
Maximum torque (Nm) |
Maximum Output Power (kw) |
Maximum Differential Pressure (MPa) |
Flow rate (L/min) |
|||
|
|
|
Continuous |
Continuous |
Intermittent |
Continuous |
Intermittent |
Continuous |
intermittent |
Continuous |
|
OK 36 |
36 |
1111 |
66 |
83 |
9 |
10.4 |
14 |
17.5 |
40 |
|
OK 50 |
51.7 |
780 |
100 |
129 |
9 |
10.4 |
14 |
17.5 |
40 |
|
OK 80 |
81.5 |
744 |
158 |
196 |
10.4 |
12.6 |
14 |
17.5 |
60 |
|
OK 100 |
102 |
595 |
200 |
242 |
10.8 |
12.8 |
14 |
17.5 |
60 |
|
OK 125 |
127.2 |
480 |
248 |
298 |
10.8 |
12.5 |
14 |
17.5 |
60 |
|
OK 160 |
157.2 |
382 |
315 |
384 |
10.4 |
11.5 |
14 |
17.5 |
60 |
|
OK 200 |
194.2 |
301 |
339 |
419 |
8.8 |
10.2 |
12.5 |
15.5 |
60 |
|
OK 250 |
253.3 |
238 |
403 |
474 |
8.1 |
9.4 |
11 |
14 |
60 |
|
OK 315 |
317.5 |
191 |
398 |
498 |
7.4 |
7.8 |
9 |
12.5 |
60 |
|
OK 375 |
318.4 |
162 |
373 |
466 |
6.2 |
7.1 |
7.5 |
9 |
60 |
* Continuous value is the maximum value that the displacement motor can work continuously.
* The intermittent value is the maximum value for which the displacement motor can operate for 6 seconds in 1 minute.
|

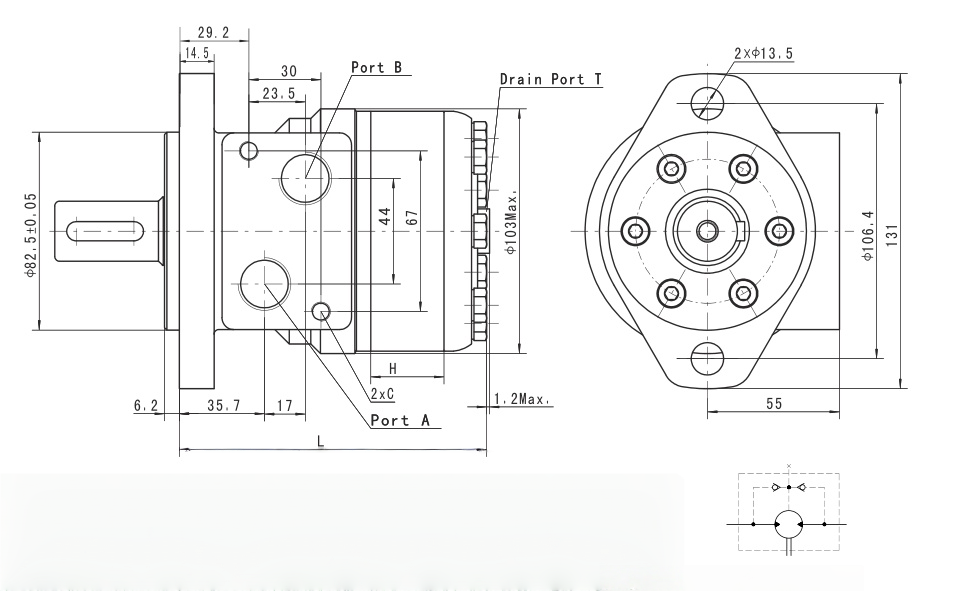

Specification |
H |
L |
|
OK36 |
7 |
105 |
|
OK50 |
10 |
108 |
|
OK80 |
16 |
114 |
|
OK100 |
20 |
118 |
|
OK125 |
25 |
123 |
|
OK160 |
30.5 |
128.5 |
|
OK200 |
38.1 |
136 |
|
OK250 |
50 |
148 |
|
OK315 |
62 |
160 |
|
OK375 |
74 |
172 |
|

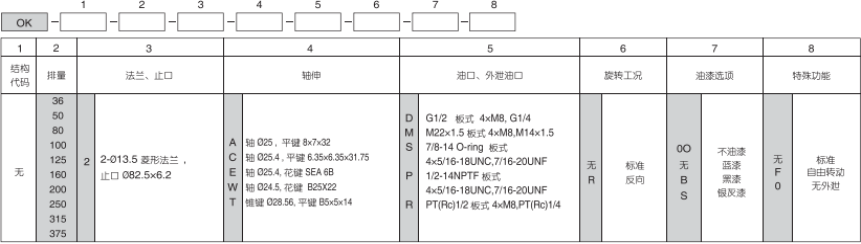

Designation Connection type |
D (deep) |
M (Deep) |
S (Deep) |
P (Deep) |
R (deep) |
|
P (A,B) |
G1/2 (15) |
M22 X 1.5 (15) |
7/8-14 O-ring (16.7) |
1/2-14nptf (15) |
PT(RC)1/2 (15) |
|
C |
2-M8 (13) |
2-M8 (13) |
2-5/16-18UNC (13) |
2-5/16-18UNC (13) |
2-M8 (13) |
|
T |
G1/4 (12) |
M14 X 1.5 (12) |
7/16-20UNF (12) |
7/16-20UNF (12) |
PT(RC)1/4 (9.7) |
Direction of shaft rotation: Standard
When facing shaft end of motor,shaft to rotate:
Clockwise when port "A" is pressurized.
Counter-clockwise when port "B" is pressurized.
